一个会话流程

1.清楚你的消息类型 message-type

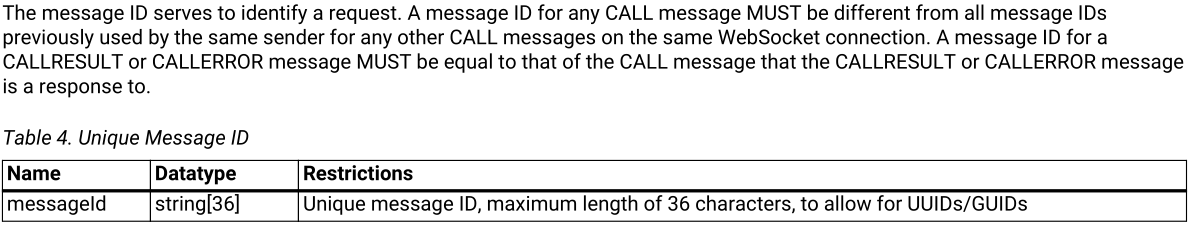

2.设置你的唯一会话ID message-id

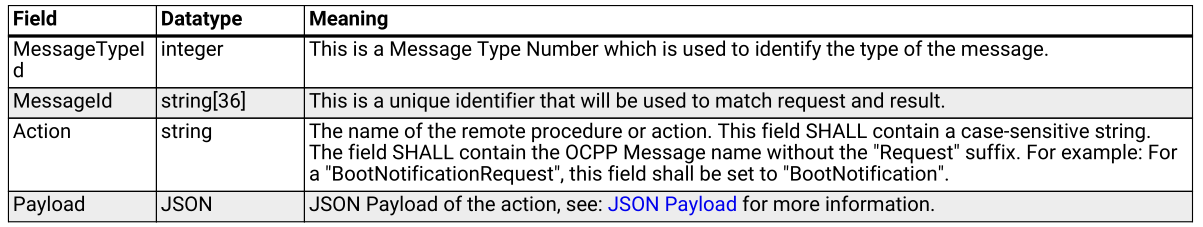

3.清楚你的call所需要的字段 call eg.

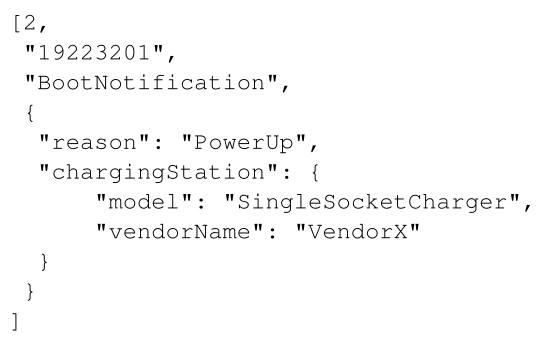

call-exp

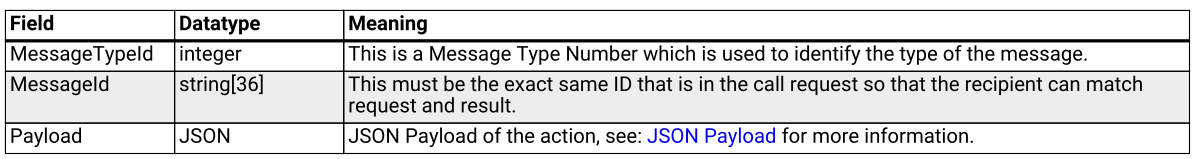

4.清楚你的call-result所需要的字段 call-result eg.

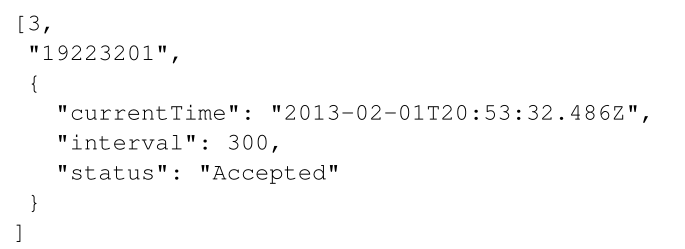

call-result-exp

BootNotification

req 字段解释

必须携带的参数

  • chargePointModel ChargePoint的model标识
  • chargePointVendor ChargePoint的vendor标识

可选参数

  • chargePointSerialNumber ChargePoint的序列号
  • firmwareVersion ChargePoint的固件版本
  • iccid ICCID of the modem’s SIM card. 参考翻译：modem’s SIM卡的ICCID
  • imsi IMSI of the modem’s SIM card. 参考翻译：modem’s SIM卡的IMSI
  • meterSerialNumber the serial number of the main power meter of the Charge Point. 参考翻译：ChargePoint的主功率表的序列号
  • meterType the type of the main power meter of the Charge Point. 参考翻译：ChargePoint的主功率表的类型
  • chargeBoxSerialNumber 已弃用，将在未来版本中删除

v16-json-官方request说明

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
{
    "$schema": "http://json-schema.org/draft-04/schema#",
    "title": "BootNotificationRequest",
    "type": "object",
    "properties": {
        "chargePointVendor": {
            "type": "string",
            "maxLength": 20
        },
        "chargePointModel": {
            "type": "string",
            "maxLength": 20
        },
        "chargePointSerialNumber": {
            "type": "string",
            "maxLength": 25
        },
        "chargeBoxSerialNumber": {
            "type": "string",
            "maxLength": 25
        },
        "firmwareVersion": {
            "type": "string",
            "maxLength": 50
        },
        "iccid": {
            "type": "string",
            "maxLength": 20
        },
        "imsi": {
            "type": "string",
            "maxLength": 20
        },
        "meterType": {
            "type": "string",
            "maxLength": 25
        },
        "meterSerialNumber": {
            "type": "string",
            "maxLength": 25
        }
    },
    "additionalProperties": false,
    "required": [
        "chargePointVendor",
        "chargePointModel"
    ]
}

req 例子

1
2
3
4
5
6
7
8
[2,
 "19223201",
 "BootNotification",
 {
  "chargePointVendor": "None",
  "chargePointModel": "None"
 }
]

携带请求头

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GET /webServices/ocpp/CS3211 HTTP/1.1
Host: some.server.com:33033
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw==
Sec-WebSocket-Protocol: ocpp1.6, ocpp2.0
Sec-WebSocket-Version: 13

[2,
 "19223201",
 "BootNotification",
 {
  "chargePointVendor": "None",
  "chargePointModel": "None"
 }
]

python websockets ocpp 尝试

server

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
import asyncio
import websockets
from datetime import datetime

from ocpp.routing import on
from ocpp.v16 import ChargePoint as cp
from ocpp.v16.enums import Action, RegistrationStatus
from ocpp.v16 import call_result, call

class ChargePoint(cp):
    @on(Action.BootNotification)
    def on_boot_notitication(self, charge_point_vendor, charge_point_model, **kwargs):
        print(charge_point_vendor)
        print(charge_point_model)
        return call_result.BootNotificationPayload(
            current_time=datetime.utcnow().isoformat(),
            interval=10,
            status=RegistrationStatus.accepted,
        )

async def on_connect(websocket, path):
    charge_point_id = path.strip('/')
    cp = ChargePoint(charge_point_id, websocket)
    await cp.start()

async def main():
    server = await websockets.serve(
        on_connect,
        '0.0.0.0',
        9000,
        subprotocols=['ocpp1.6']
    )
    await server.wait_closed()


if __name__ == '__main__':
    asyncio.run(main())

client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import json
import asyncio
import websockets

async def boot():
    async with websockets.connect('ws://127.0.0.1:9000/exp01/') as websocket:
        message = [2,
        "20220613001",
        "BootNotification",
        {
            "chargePointVendor": "china",
            "chargePointModel": "unknow"
        }
        ]
        await websocket.send(json.dumps(message))

        result = await websocket.recv()
        print(result)
        await websocket.close()

asyncio.get_event_loop().run_until_complete(boot())

输出

server

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
china
unknow
connection handler failed
Traceback (most recent call last):
  File "C:\Users\R\AppData\Local\Programs\Python\Python37\lib\site-packages\websockets\legacy\server.py", line 232, in handler
    await self.ws_handler(self)
  File "C:\Users\R\AppData\Local\Programs\Python\Python37\lib\site-packages\websockets\legacy\server.py", line 1149, in _ws_handler
    )(websocket, websocket.path)
  File "c:\Users\R\Desktop\充电桩\ocpp-test\server.py", line 94, in on_connect
    await cp.start()
  File "C:\Users\R\AppData\Local\Programs\Python\Python37\lib\site-packages\ocpp\charge_point.py", line 128, in start
    message = await self._connection.recv()
  File "C:\Users\R\AppData\Local\Programs\Python\Python37\lib\site-packages\websockets\legacy\protocol.py", line 553, in recv
    await self.ensure_open()
  File "C:\Users\R\AppData\Local\Programs\Python\Python37\lib\site-packages\websockets\legacy\protocol.py", line 930, in ensure_open
    raise self.connection_closed_exc()
websockets.exceptions.ConnectionClosedOK: received 1000 (OK); then sent 1000 (OK)

client

1
[3,"20220613001",{"currentTime":"2022-06-13T02:49:13.748448","interval":10,"status":"Accepted"}]
